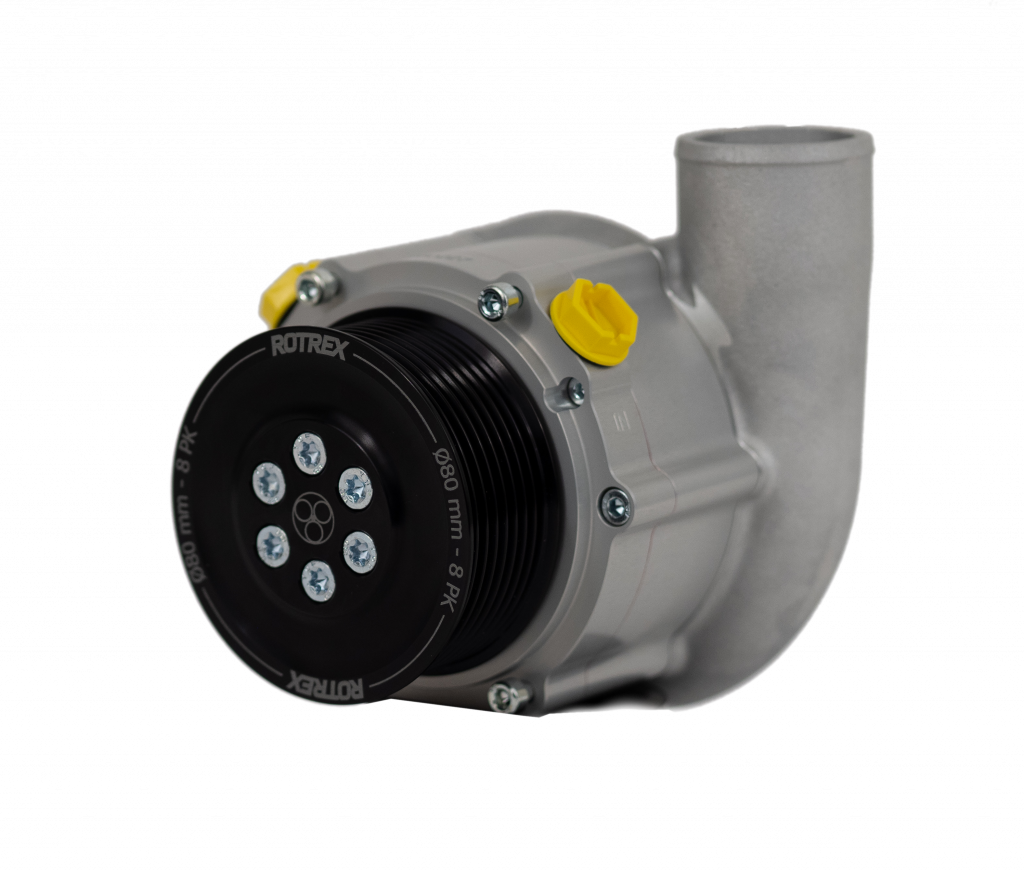

C15 – Max air flow 0.22 kg/s
- Power range: 60-175kW (82-238hp)
- 201,500 rpm maximum impeller speed
- 1 : 12.67 gear ratio
Centrifugal Superchargers
For more than 25 years Rotrex has been producing centrifugal superchargers as a bolt-on addition to improve performance of your car, motorcycle, boat or offroader.
We offer the most compact, reliable and efficient superchargers on the market combined with simple integration requirements.
Rotrex is the only centrifugal supercharger used in OEM factory fitment production cars, underlining our product’s reliability and performance.
All our superchargers are developed, manufactured, assembled and tested in Denmark.
Rotrex centrifugal superchargers - The superior advantages
Acceleration and power delivery
Compared to traditional centrifugal superchargers, the Rotrex unit offers the highest boost at low and mid-range engine speeds. Compressor speeds as high as 240,000 rpm results in superior acceleration and power delivery.
Reliability
The secret behind Rotrex is the patented planetary traction drive. Smooth planet rollers without sensitive teeth’s gives silent mechanical operation, less vibrations and offer reliability under all types of operations.
Compactness
The compactness and shape of the small Rotrex superchargers offers unique packaging advantages and installation flexibility, an important characteristic in the small modern engine compartment.
Technical specifications
The Rotrex standard product range consists of several family sizes.
Technical Data Sheet
Technical Data Sheet

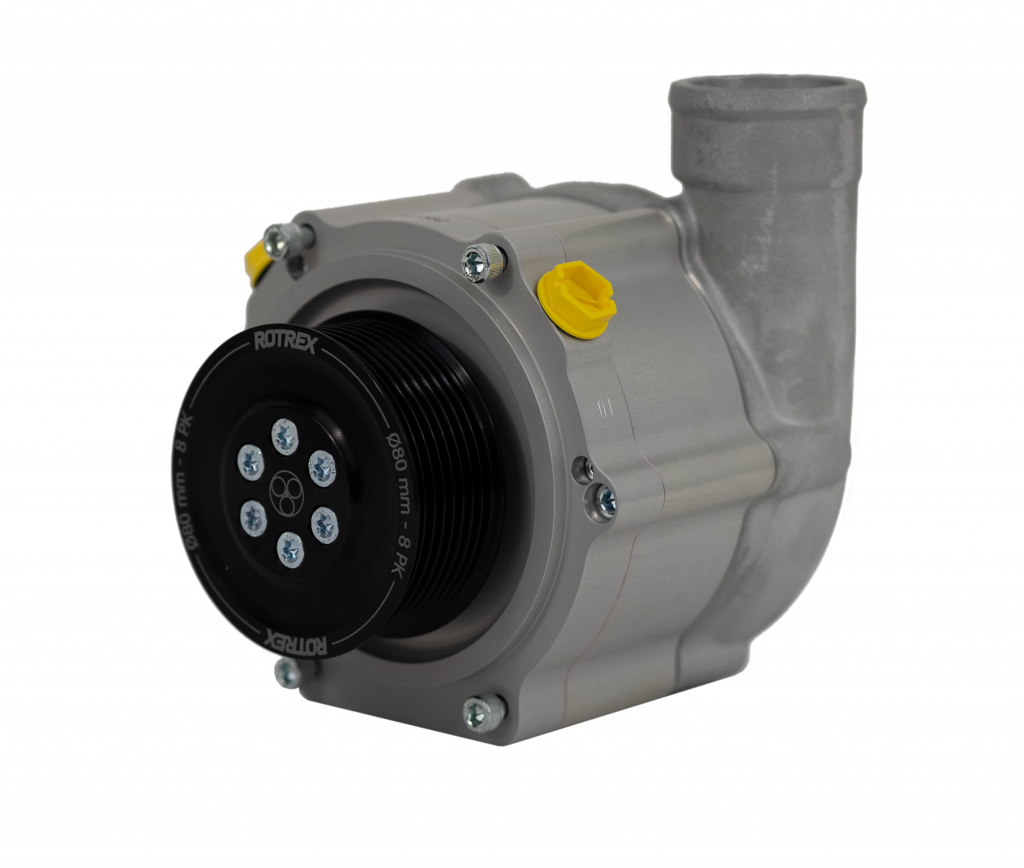

C30 – Max air flow 0.44 kg/s
- Power range: 120-360kW (163-490hp)
- 120,000 rpm maximum impeller speed
- 1 : 9.49 gear ratio
- C30-94 and C30-94P available in both CW and CCW
Technical Data Sheet

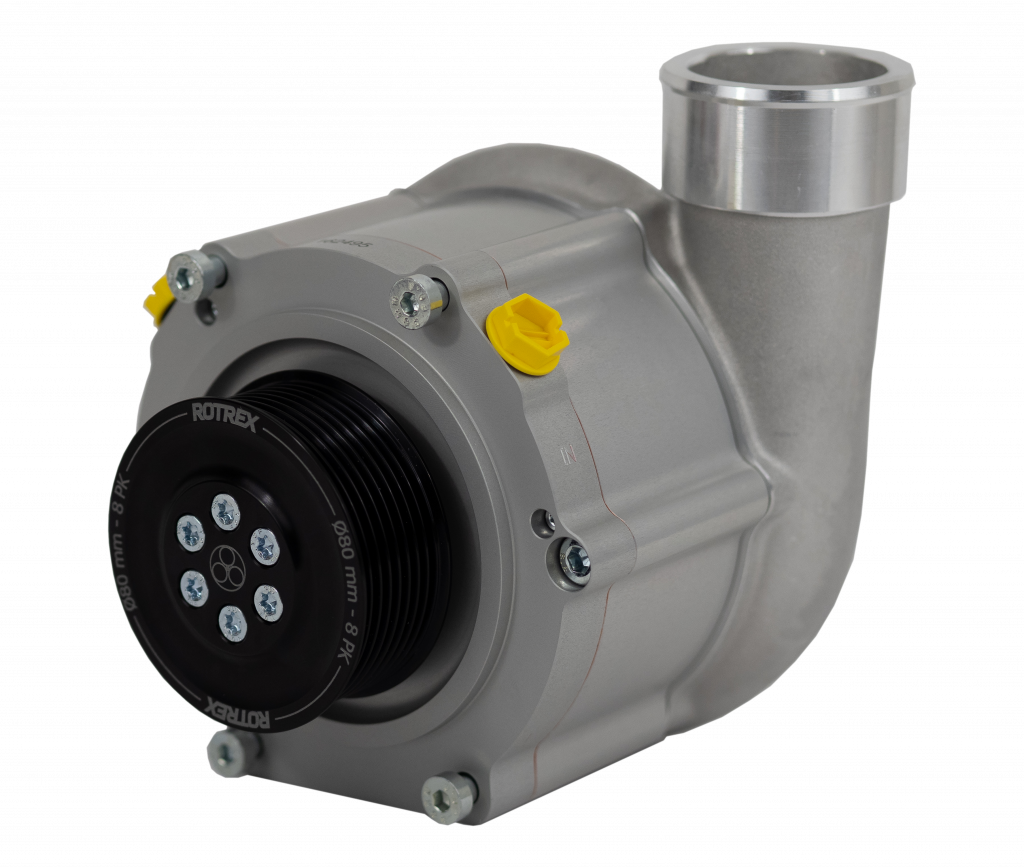

C38 – Max air flow 0.63 kg/s
- Power range: 200-530kW (272-720hp)
- 90,000 rpm maximum impeller speed
- 1 : 7.50 gear ratio
Technical Data Sheet

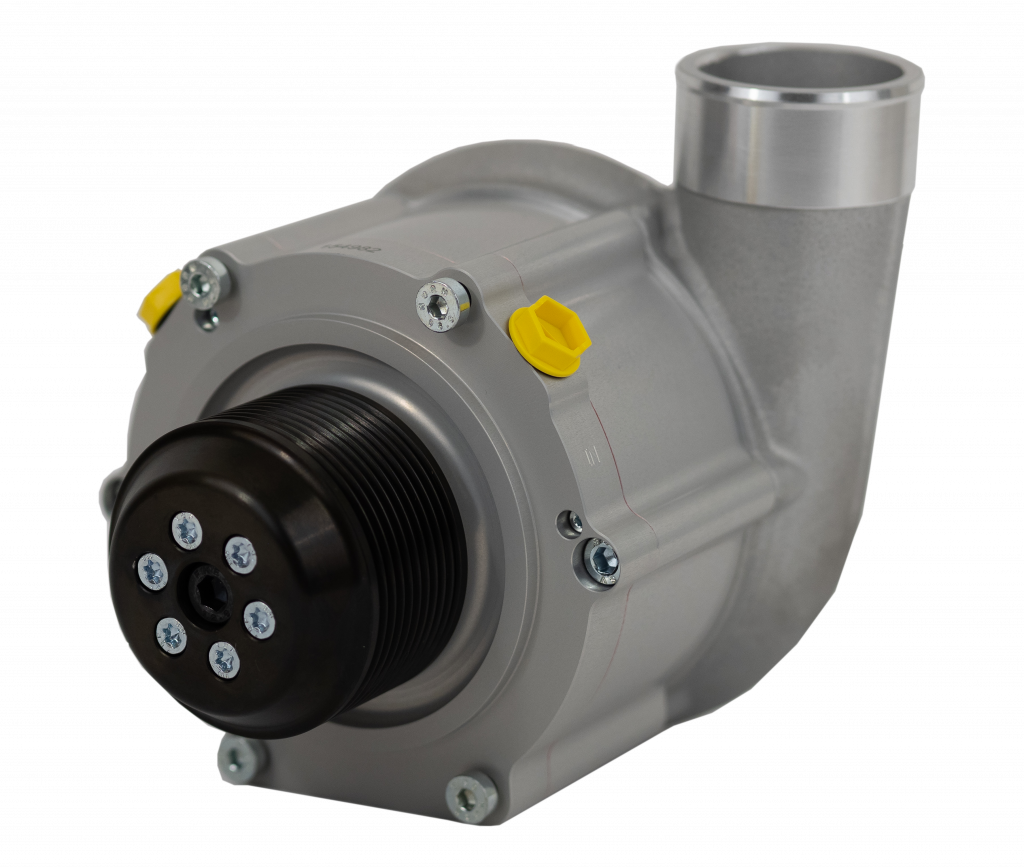

C38R – Max air flow 1,1 kg/s
- Power range: 340-940kW (455-1240hp)
- 90,000 rpm maximum impeller speed
- 1 : 6 gear ratio
- C38R-112 available in both CW and CCW
Rotrex pulley rings
Pulley rings for available in sizes from Ø70mm – Ø110mm
Setup and Maintenance
Rotrex superchargers are based on a patented high-speed planetary traction drive. Through innovative technology, advanced materials and quality control we strive to make this product the best in the market.
To get the most out of your Rotrex supercharger and to avoid problems carefully follow the instructions in your supercharger kit documentation and this leaflet.
The guidelines in this leaflet are only for general issues, please contact your Rotrex dealer for all specifications and requirements of the Rotrex supercharger system.

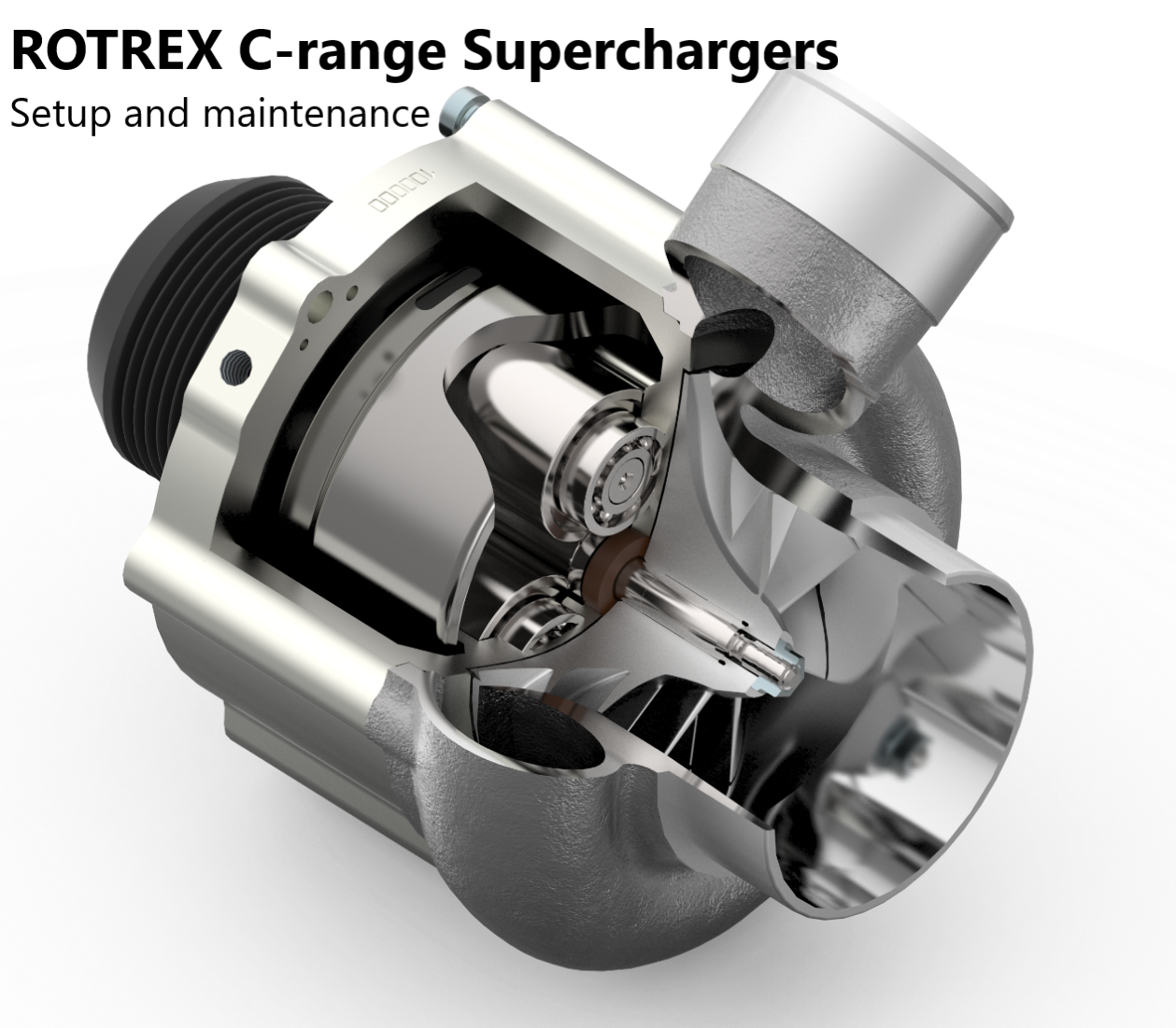

Patented technology
Key to Rotrex centrifugal superchargers superior combination of power delivery, compactness and reliability is its patented state of the art traction drive technology.
Great speeds and low mechanical noise are just some of the advantages of traction drives over traditional gear transmissions. Traction drives transmit power through friction forces between its rolling elements.
This traction drive combined with the latest technology in centrifugal compression, characterized by high adiabatic efficiency and low mechanical noise, gives Rotrex centrifugal superchargers an exceptional competitive edge over any other forced induction solution.
